                      MSO2014B

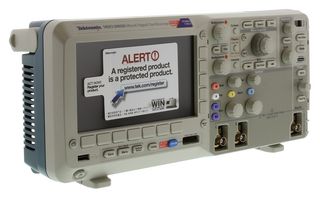

                      MSO / MDO Oscilloscope, MSO2000B Series, 4+16 Channel, 100 MHz, 1 GSPS, 1 Mpts, 3.5 ns

                      TEKTRONIX MSO2014B
                      TEKTRONIX MSO2014B
                      TEKTRONIX MSO2014B
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerTEKTRONIX
                      Manufacturer Part NoMSO2014B
                      Newark Part No.28W4953
                      Product RangeMSO2000B Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Available

                      Product Information

                      ManufacturerTEKTRONIX
                      Manufacturer Part NoMSO2014B
                      Newark Part No.28W4953
                      Product RangeMSO2000B Series
                      Technical Datasheet

                      Data Sheet

                      Product RangeMSO2000B Series
                      Scope Channels4+16 Channel
                      Bandwidth100MHz
                      Sampling Rate1GSPS
                      Display Memory Depth1 Mpts
                      Calculated Rise Time3.5ns
                      Scope Display TypeTFT LCD Colour
                      Kit ContentsOne TPP0200 200MHz Passive Probe Per Channel (10:1), One P6316 16-Channel Logic Probe, OpenChoice Desktop Software, Calibration Certificate, Quick Reference Manual & Documentation on CD, Power Cord
                      Manufacturer Warranty5 Years
                      Plug TypeUS
                      SVHCTo Be Advised

                      Product Overview

                      Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the Mixed Signal Oscilloscope Series delivers advanced debug features at an entry-level price. With up to 20 channels for analyzing analog and digital signals, you can quickly find and diagnose problems in complex designs. To capture long windows of signal activity while maintaining fine timing resolution,To capture long windows of signal activity while maintaining fine timing resolution, the MSO2014B offers a deep record length of 1 Mpoints standard on all channels.

                      • 1 GS/s Sample Rate on All Channels
                      • 1 Megapoint Record Length on All Channels
                      • 5,000 wfm/s Maximum Waveform Capture Rate
                      • Suite of Advanced Triggers
                      • 7 in. (180 mm) Widescreen TFT-LCD Colour Display

                      Applications

                      Maintenance & Repair, Test & Measurement

                      Notes

                      Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.

                      Technical Specifications

                      Product Range

                      MSO2000B Series

                      Bandwidth

                      100MHz

                      Display Memory Depth

                      1 Mpts

                      Scope Display Type

                      TFT LCD Colour

                      Manufacturer Warranty

                      5 Years

                      SVHC

                      To Be Advised

                      Scope Channels

                      4+16 Channel

                      Sampling Rate

                      1GSPS

                      Calculated Rise Time

                      3.5ns

                      Kit Contents

                      One TPP0200 200MHz Passive Probe Per Channel (10:1), One P6316 16-Channel Logic Probe, OpenChoice Desktop Software, Calibration Certificate, Quick Reference Manual & Documentation on CD, Power Cord

                      Plug Type

                      US

                      Technical Docs (5)

                      Manufacturer Product Page EN

                      Technical Data Sheet EN

                      Technical Data Sheet EN

                      Enhanced Product Overview EN

                      Operating Instructions EN

                      Associated Products

                      8 Products Found

                      Legislation and Environmental

                      US ECCN:3A992
                      EU ECCN:Unknown
                      RoHS Compliant:Y-Ex

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:To Be Advised
                      Download Product Compliance Certificate

                      Product Compliance Certificate
