DT-205LR-S12

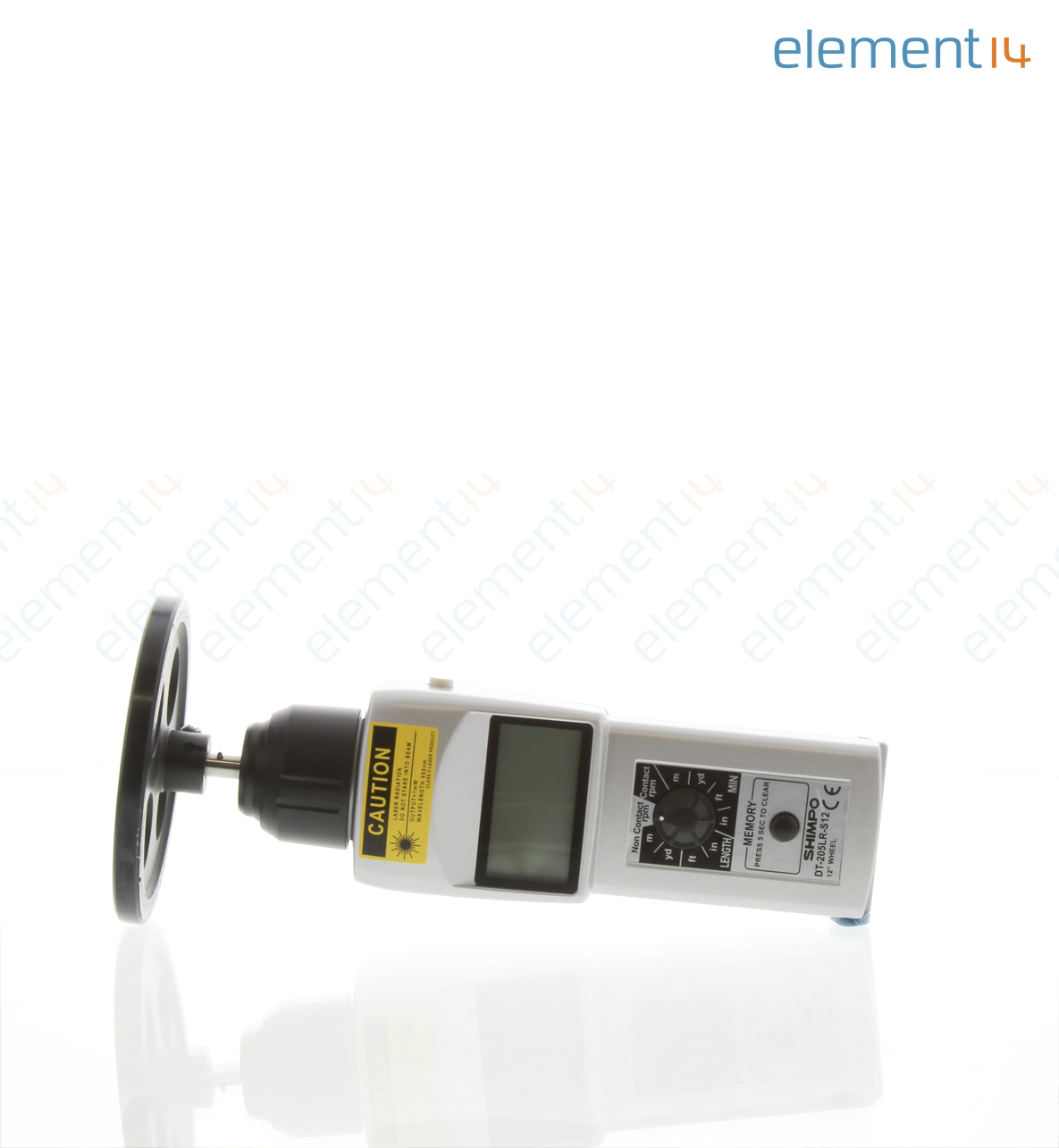

The Shimpo DT-205LR-S12 is a battery operated, microprocessor controlled, non-contact/contact tachometer that utilizes laser beam for movement detection. In the non-contact mode a laser beam measures RPM when directed towards a shaft (or any other rotating mechanism marked with a small piece of reflective tape). The included DT-ADP-200LR adapter allows for contact measurement via a rubber tip cone attachment or the included wheel attachment

• Laser beam for movement detection
• Multi-mode capability measures RPM, mPM, YPM, FPM, IPM and total meters, yards, feet and inches.
• 13 measurement memory
• Reliable and low maintenance
• Measures from up to 20 ft.
• 5 digit LCD display
• Rugged die cast aluminium housing
• Broad speed range (up to 99,999 RPM)
• Extended battery life (up to 40 hours)

Applications

Test & Measurement, Maintenance & Repair

Contents

Reflective tape, 2 x Cone adapters, Funnel adapter, Master wheel (12" cir.), 3.5" extension shaft, 200LR adapter, Carrying case, AA 1.5V batteries, NIST certificate, User Manual
