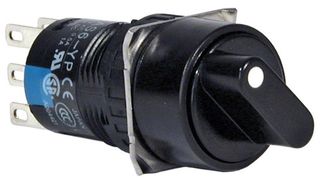

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
Quantity | Price |
---|---|
1+ | $30.180 |
5+ | $28.670 |
10+ | $27.160 |
Price for:Each
Minimum: 1
Multiple: 1
$30.18
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerIDEC
Manufacturer Part NoAS6M-21Y2P
Newark Part No.15C5877
Technical Datasheet
No. of Switch Positions2 Position
No. of Poles2 Pole
Angle of Throw-
Contact Current AC Max1A
Contact Voltage AC Max120V
Product Range-
IlluminationNon Illuminated
Contact Current DC Max1A
Contact Voltage DC Max-
SVHCNo SVHC (16-Jul-2019)
Product Overview
The AS6M-21Y2P is a 2-position Selector Switch with Ø16mm spring return from right knob round operator and 2NO 2NC gold-clad silver snap action contacts for reliable low level switching.
- 50mΩ maximum (initial value) Contact resistance
- 100MΩ minimum at 500VDC megger Insulation resistance
- 100000 operations Minimum electrical life
Applications
Industrial
Technical Specifications
No. of Switch Positions
2 Position
Angle of Throw
-
Contact Voltage AC Max
120V
Illumination
Non Illuminated
Contact Voltage DC Max
-
No. of Poles
2 Pole
Contact Current AC Max
1A
Product Range
-
Contact Current DC Max
1A
SVHC
No SVHC (16-Jul-2019)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
