1200710040
Sensor Connector, PG7, Micro-Change 120071 Series, M12, Plug, 4 Contacts, Solder Pin

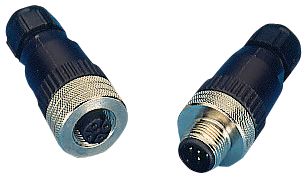

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX / BRAD
Manufacturer Part No1200710040
Newark Part No.31M6777
Product RangeMicro-Change 120071 Series
Also Known As8A4007-31
Technical Datasheet
21 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $75.330 |
| 5+ | $69.310 |
| 10+ | $62.900 |
| 25+ | $58.010 |
Price for:Each
Minimum: 1
Multiple: 1
$75.33
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX / BRAD
Manufacturer Part No1200710040
Newark Part No.31M6777
Product RangeMicro-Change 120071 Series
Also Known As8A4007-31
Technical Datasheet
Product RangeMicro-Change 120071 Series
Sensor Connector SizeM12
Sensor Connector GenderMale
No. of Contacts4Contacts
No. of Positions4 Positions
Sensor Contact TypeSolder Pin
Sensor Connector MountingRight Angle Cable Mount
IP / NEMA RatingIP67
Connector Coding-
Connector Body MaterialNylon (Polyamide) Body
Contact MaterialBrass
Contact PlatingSilver
Current Rating4A
Voltage Rating300V
SVHCLead
Product Overview
The 1200710040 is a 4-position 90 degree Sensor Connector with silver plated brass contacts and a Polyamide molded body. This connector features single key M12 connector per IEC 61076-2-101 and screw terminal connection accepts up to 18AWG conductors. For use with all standard single keyway M12 receptacles and cordsets.
- 4A Rated current
- IP67 Protection rating
Applications
Sensing & Instrumentation
Technical Specifications
Product Range
Micro-Change 120071 Series
Sensor Connector Gender
Male
No. of Contacts
4Contacts
Sensor Contact Type
Solder Pin
IP / NEMA Rating
IP67
Connector Body Material
Nylon (Polyamide) Body
Contact Plating
Silver
Voltage Rating
300V
Sensor Connector Size
M12
Gender
Plug
No. of Positions
4 Positions
Sensor Connector Mounting
Right Angle Cable Mount
Connector Coding
-
Contact Material
Brass
Current Rating
4A
SVHC
Lead
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
