CL-110

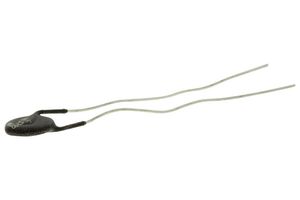

The CL-110 is an NTC (Negative Temperature Coefficient) Disc Thermistor/Inrush Current Limiter with uninsulated lead-wires. It limits surge current by functioning as a power resistor which drops from a high cold resistance to a low hot resistance when heated by the current flowing through it. The main purpose of limiting inrush current is to prevent components in series with the input to the DC/DC convertor from being damaged. Typically, inrush protection prevents nuisance blowing of fuses or breakers as well as welding of switch contacts. Control of the inrush current in switching power supplies, fluorescent lamp, inverters, motors, etc.

• Solid state device for inrush current suppression
• Excellent mechanical strength
• Suitable for PCB mounting
• Low steady resistance and accompanying power loss
• Small size
• 3.2A Maximum steady state current up to 25°C
• 8mW/°C Dissipation constant
• 30s Thermal time constant
• 0.19Ω Resistance (at 100% maximum load)
• 4.32J Maximum energy

Applications

Power Management, Lighting, Motor Drive & Control, Industrial, Safety
